Within the 3DEXPERIENCE platform, we utilize SIMULIA for advanced simulation in industrial projects. Its seamless integration with CATIA on a unified data model ensures superior user experience and complete data integrity. We have successfully executed numerous linear and nonlinear static and dynamic simulations across key sectors, including automotive, marine, and rail transportation industries.

Linear & non-linear static analysis in different Loadings & BCs

We perform static equilibrium analyses under various loading conditions and boundary conditions (BCs) across multiple industries, including transportation and marine applications. These include:

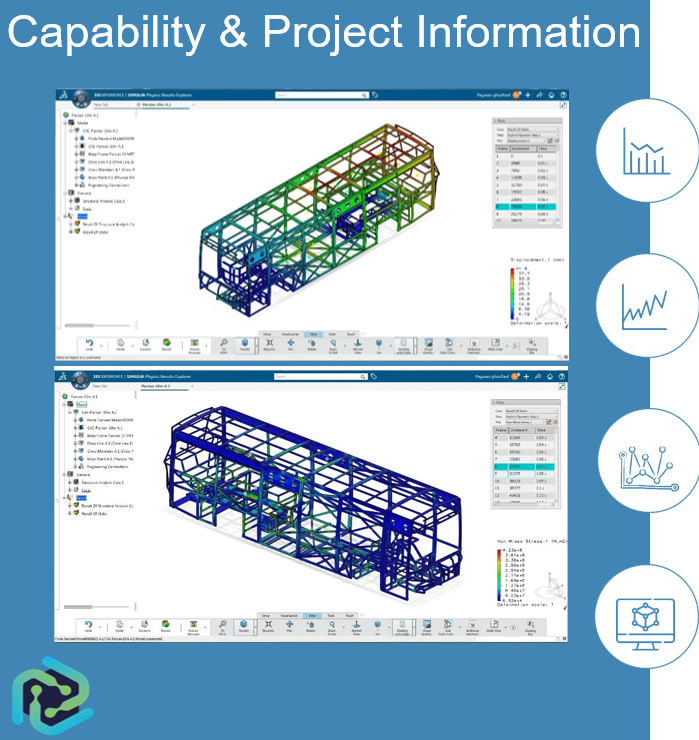

  • Static stress analysis of bus structures and chassis
  • Stress analysis of pressure vessels
  • Buckling analysis of structures and columns
  • Analysis of forming processes (Deep Drawing, Rolling, etc.)
  • Crack growth studies in various materials
  • Spring-back analysis
Natural frequency analysis of parts and structures
  • Natural frequency analysis of vehicle structures and advanced structural components
  • Structural stiffness comparison using modal frequency analysis
Non-linear Dynamic Analysis

We study complex nonlinear phenomena using both explicit and implicit solvers, including:

  • Design and analysis of thin-walled tube crushing for energy absorption applications
  • Vehicle crash simulation under various conditions in accordance with international safety standards
  • Ballistic impact analysis for armor design applications
Advanced Materials Simulation

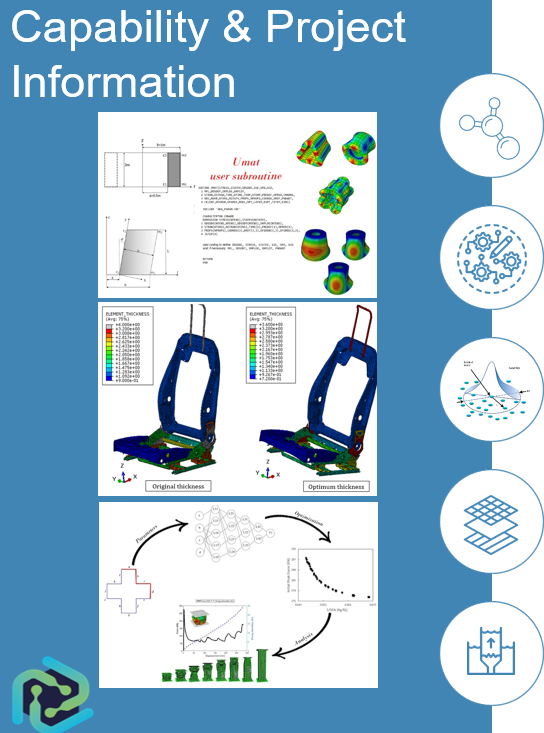

  • Modeling of Functionally Graded Materials (FGM) using UMAT under thermal and pressure loads
  • Mechanical behavior modeling of Shape Memory Alloy (SMA) wires
  • Cohesive Zone Modeling (CZM) for delamination analysis in sandwich panel structures
Topology Optimization using FEM
  • Topology optimization of structures in transportation and marine applications
  • Application of FEM-based optimization tools (topology, shape, and size) to refine existing designs and achieve significant product light weighting while maintaining functional performance
Process integration and design optimization

Using SIMULIA Insight and Process Composer within the 3DEXPERIENCE platform, we automate and optimize designs through:

  • Multi-objective optimization (NSGA-II) for energy-absorbing structures
  • Integrated parametric optimization of mechanical parts linking Abaqus, CATIA, and MATLAB
SPH (Smoothed Particle Hydrodynamics) Analysis

Analysis of Eulerian behaviors using Lagrangian elements

  • Sloshing phenomenon simulation in bus fuel tanks using the SPH method
Composite Structures Design and Analysis
  • Design and analysis of composite structures for transportation and aviation industries
  • Optimization of composite laminates through fiber orientation and layer count optimization
Coupled Thermo-Mechanical Analysis
  • Study of residual stresses from welding processes using the DFLUX subroutine
  • Analysis of welding-induced residual stresses using the element birth and death technique
